Right Angle Gearbox 1:1 Ratio vs Worm Drive: Which Delivers Better ROI for Industrial Applications?

Industrial facility managers face mounting pressure to optimize equipment performance while controlling operational costs. When machinery requires directional power transmission changes, the choice between different gearbox technologies directly impacts productivity, maintenance schedules, and long-term profitability. Two dominant solutions compete for attention in this space: right angle gearboxes with 1:1 ratios and traditional worm drive systems.

The decision extends beyond initial purchase price. Equipment downtime, energy consumption, maintenance frequency, and replacement cycles create cascading effects throughout operations. Manufacturing plants, material handling facilities, and processing operations depend on reliable power transmission to maintain consistent output. When these systems fail or operate inefficiently, the consequences ripple through production schedules and delivery commitments.

Understanding the operational and financial implications of each technology helps decision-makers align equipment choices with business objectives. The comparison involves multiple factors that influence total cost of ownership and operational reliability over time.

Understanding Right Angle Gearbox 1:1 Ratio Performance Characteristics

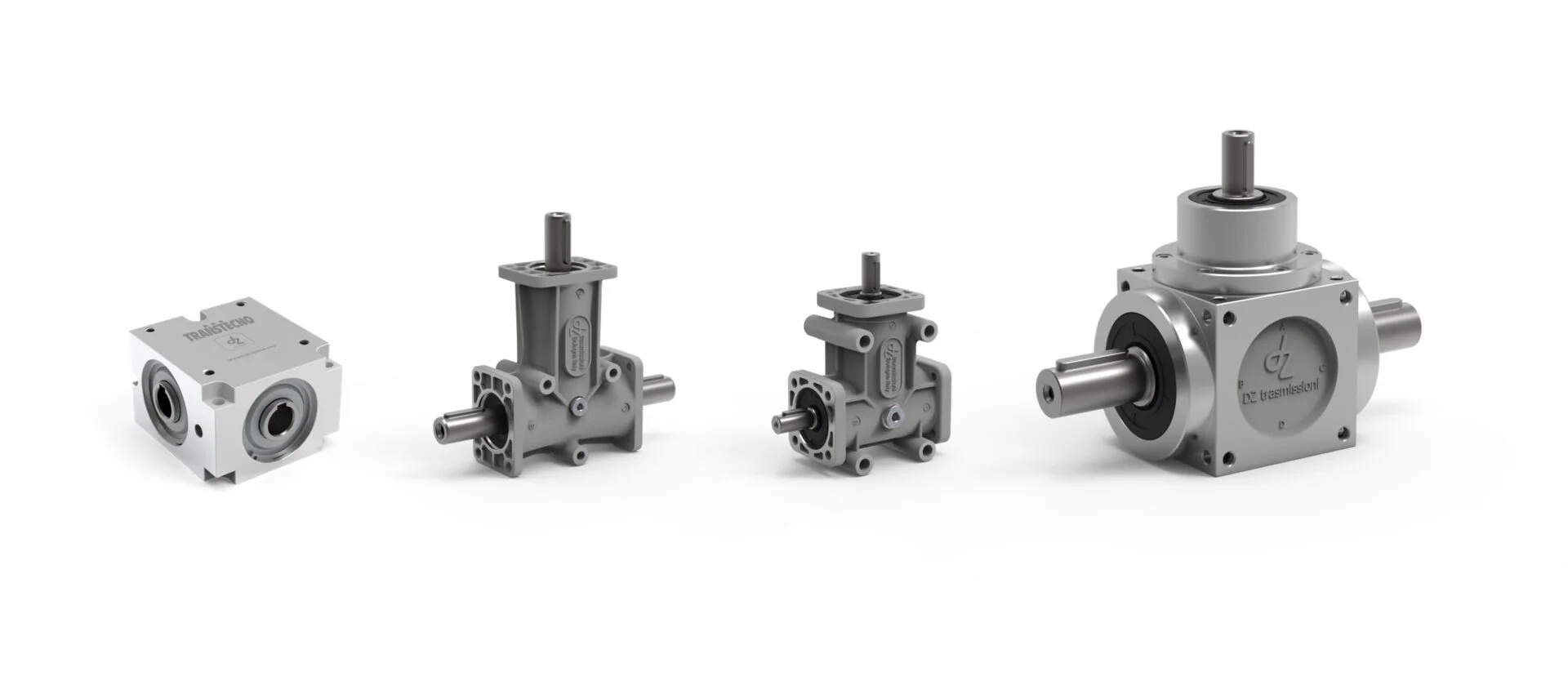

Right angle gearbox 1 1 ratio systems redirect power transmission by ninety degrees without changing rotational speed. This configuration maintains input speed at the output shaft while changing the direction of rotation, making it valuable for space-constrained applications where direct drive arrangements prove impractical. The Right Angle Gearbox 1 1 Ratio overview demonstrates how these units achieve directional changes while preserving operational efficiency.

The internal mechanism typically employs bevel gears or spiral bevel designs to accomplish the directional change. Unlike reduction gearboxes that modify speed and torque relationships, these units focus purely on redirecting mechanical power. This specialization allows manufacturers to optimize the design for efficiency and durability rather than accommodating multiple gear ratios.

Efficiency ratings for quality right angle gearbox 1 1 ratio units often exceed ninety-five percent under normal operating conditions. This high efficiency translates to reduced energy consumption and lower heat generation during operation. The direct gear engagement minimizes sliding friction, which contributes to both efficiency and component longevity.

Load Handling and Torque Management

Right angle gearbox designs handle shock loads and torque fluctuations differently than worm drive systems. The gear tooth engagement distributes forces across multiple contact points, reducing stress concentration on individual components. This distribution helps prevent catastrophic failures during unexpected load spikes or operational irregularities.

The bidirectional capability of right angle gearboxes supports applications requiring reversible operation. Manufacturing equipment, conveyor systems, and positioning devices benefit from this operational flexibility. The gear arrangement maintains efficiency levels in both rotational directions, unlike some alternative technologies that favor single-direction operation.

Maintenance Requirements and Service Access

Service intervals for right angle gearbox 1 1 ratio units typically extend longer than worm drive alternatives due to reduced internal wear patterns. The rolling contact between gear teeth generates less friction heat compared to the sliding contact inherent in worm mechanisms. Lower operating temperatures extend lubricant life and reduce thermal stress on internal components.

Component replacement procedures generally require complete unit disassembly, but the robust construction means major repairs occur infrequently when proper maintenance schedules are followed. Preventive maintenance focuses on lubricant monitoring and seal inspection rather than frequent component adjustments or replacements.

Worm Drive System Operational Profile

Worm drive gearboxes achieve right angle power transmission through a different mechanical approach, using a threaded worm gear that engages with a worm wheel. This design inherently provides speed reduction along with directional change, making it suitable for applications requiring both functions simultaneously. The sliding contact between components creates different performance characteristics compared to the rolling contact found in bevel gear systems.

Self-locking capability distinguishes worm drives from other gearbox technologies. When properly designed, the friction between worm and wheel prevents reverse driving, meaning the output shaft cannot rotate the input shaft. This characteristic benefits applications where holding torque is required without additional braking mechanisms.

Manufacturing costs for worm drive units often remain lower than comparable right angle gearboxes due to simpler production requirements. The worm can be machined using conventional methods, while the wheel requires less precision than bevel gear manufacturing. This cost advantage makes worm drives attractive for budget-conscious applications where performance trade-offs are acceptable.

Efficiency Considerations and Energy Impact

Worm drive efficiency typically ranges from sixty to ninety percent depending on design quality and operating conditions. The sliding contact between worm and wheel creates inherent friction losses that convert mechanical energy to heat. Higher reduction ratios generally correlate with lower efficiency, as more sliding contact occurs per output revolution.

Heat generation from friction losses requires consideration in system design. Adequate ventilation or cooling may be necessary to prevent lubricant degradation and component thermal stress. The energy converted to heat represents ongoing operational cost that accumulates over the equipment lifecycle.

Load characteristics significantly influence worm drive efficiency. Light loads may result in lower efficiency percentages due to the constant friction losses representing a larger proportion of total energy transfer. Optimal efficiency typically occurs within a specific load range that varies by design and application.

Service Life and Replacement Patterns

Worm drive service life depends heavily on operating conditions and maintenance quality. The sliding contact creates gradual wear patterns that eventually require component replacement. Regular lubricant analysis helps predict component condition and schedule maintenance before failures occur.

Replacement parts availability often favors worm drives due to their widespread use and standardized dimensions. Many manufacturers offer interchangeable components, reducing procurement complexity and inventory requirements. This parts availability can offset some operational disadvantages in applications where rapid repair capability is essential.

Total Cost of Ownership Analysis Framework

Comparing right angle gearbox 1 1 ratio systems with worm drives requires evaluation beyond initial purchase price. Energy consumption differences accumulate significantly over operational lifespans, particularly in continuous-duty applications. The efficiency advantage of right angle gearboxes translates to measurable energy savings that offset higher initial investment costs.

Maintenance cost patterns differ substantially between technologies. Right angle gearboxes typically require less frequent service but higher cost per maintenance event due to component complexity. Worm drives may need more regular attention but individual service costs remain lower. The net maintenance cost depends on specific application demands and facility capabilities.

Downtime costs represent a critical factor often overlooked in simple cost comparisons. Equipment reliability directly impacts production continuity and delivery performance. According to the U.S. Department of Energy, motor and drive system improvements can significantly impact industrial facility operating costs and efficiency.

Application-Specific Performance Factors

Duty cycle requirements strongly influence technology selection. Continuous operation favors the efficiency advantages of right angle gearbox 1 1 ratio designs, while intermittent duty applications may not justify the additional initial investment. Operating hour accumulation determines when efficiency gains overcome cost premiums.

Environmental conditions affect both technologies differently. High-temperature environments challenge worm drive lubrication systems more severely due to inherent heat generation. Contaminated atmospheres may impact seal performance more critically in right angle gearboxes due to tighter manufacturing tolerances.

Load profile characteristics determine optimal technology selection. Variable loads with frequent direction changes favor right angle gearboxes, while steady unidirectional loads with holding requirements may benefit from worm drive self-locking characteristics. Shock load frequency and magnitude influence component selection within each technology category.

Strategic Implementation Considerations

Facility standardization strategies influence gearbox technology decisions beyond individual application requirements. Maintaining fewer technology types reduces spare parts inventory, simplifies training requirements, and streamlines maintenance procedures. The long-term operational advantages of standardization may override short-term cost optimizations for specific applications.

Supplier relationship management affects total cost of ownership through parts availability, technical support quality, and warranty performance. Established relationships with reliable suppliers can mitigate technology disadvantages through superior service and support. New supplier relationships require evaluation of long-term capability and commitment.

Future modification flexibility should be considered during initial selection. Right angle gearbox 1 1 ratio systems offer easier integration with variable frequency drives and electronic controls due to their bidirectional efficiency. Worm drives may require additional considerations when implementing speed control or automated systems.

Risk Assessment and Mitigation Strategies

Failure mode analysis reveals different risk profiles for each technology. Right angle gearboxes typically exhibit gradual wear patterns with predictable failure indicators, allowing planned maintenance scheduling. Worm drives may experience more sudden failures when lubrication problems develop or contamination occurs.

Backup equipment strategies depend on failure characteristics and replacement lead times. Critical applications may require different approaches based on selected technology. Inventory requirements for emergency repairs vary significantly between right angle gearboxes and worm drives due to component complexity and interchangeability.

Making the ROI Decision

Return on investment calculations must incorporate all relevant cost factors over realistic operational timelines. Energy savings from higher efficiency right angle gearbox 1 1 ratio systems compound over time, particularly in high-utilization applications. Maintenance cost differences require careful analysis based on facility capabilities and labor costs.

Payback period analysis should consider operational risk factors alongside direct costs. Production downtime costs may dwarf equipment cost differences in high-value manufacturing processes. Reliability improvements often justify premium initial investments through avoided disruption costs.

The optimal choice depends on specific application requirements, operational priorities, and facility constraints. Right angle gearbox 1 1 ratio systems typically deliver superior ROI in high-efficiency, continuous-duty applications where energy costs are significant. Worm drives may provide better value in intermittent-duty applications where initial cost control takes priority over operational efficiency.

Successful implementation requires thorough analysis of total cost of ownership rather than simple initial cost comparison. The technology that delivers the best long-term value aligns with operational requirements while supporting business objectives through reliable, efficient performance.
