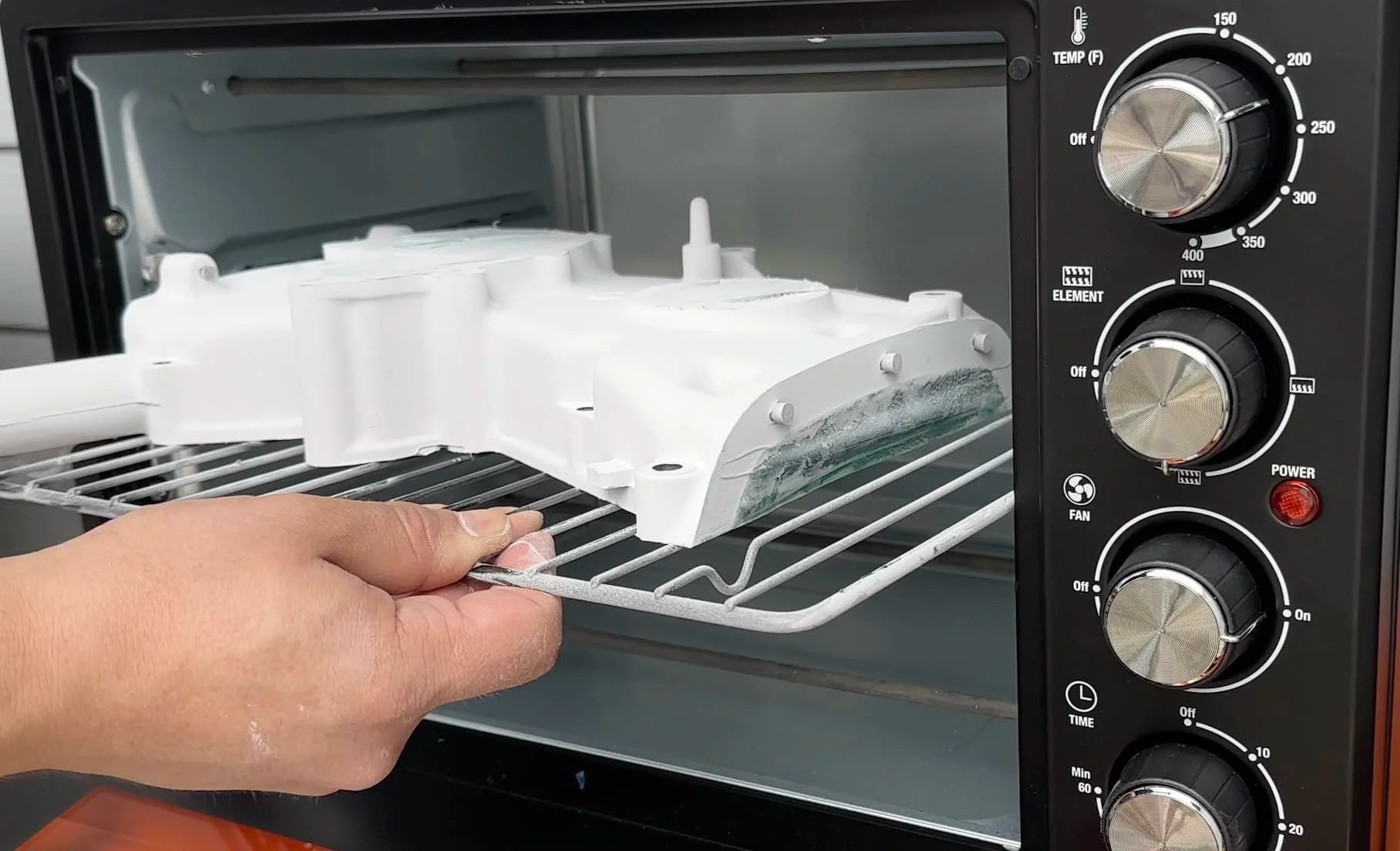

Calibrating Modern Powder Coating Ovens
Heat inside a curing oven must do more than simply reach a target number. The real measure of performance lies in whether coated metal actually receives the temperature required for proper curing. Careful calibration allows powder coating ovens to deliver repeatable heat conditions that support consistent powder coating results across different parts and production loads.
What Proper Oven Calibration Really Confirms
Calibration verifies that the oven’s control system reflects the real temperature conditions inside the chamber. Powder curing ovens may display a certain temperature on the control panel, yet the air or metal parts inside the chamber could be slightly warmer or cooler. Calibration compares these readings with independent instruments so operators know the equipment is performing as intended. Reliable calibration also confirms that the heating system distributes energy evenly throughout the chamber. Engineers perform this process when installing a new powder coating equipment package or when reviewing powder coating equipment that has been running for extended periods. A properly calibrated industrial powder coating oven helps maintain predictable curing cycles and stable powder coating performance.
Verifying True Metal ReadingsTemperature
Metal temperature matters more than air temperature during curing. Powder coatings react chemically once the coated surface reaches the required heat level, which means accurate readings must reflect the metal itself rather than the surrounding air. Thermocouples attached directly to test panels allow technicians to monitor the actual temperature experienced by coated parts. Data collected from these tests often reveals small differences between displayed oven temperatures and the heat absorbed by metal components. That difference may appear minor but can affect the final finish quality. Confirming true metal temperatures ensures powder coating systems maintain the proper curing environment regardless of part size or rack configuration.
Why Sensor Placement Changes Cure Accuracy
Sensor location inside powder coating ovens directly affects how accurately the system reports temperature. If a sensor sits near a heating duct or recirculation fan, it may register higher temperatures than the rest of the chamber. Poor placement can create the illusion of proper curing conditions even when cooler areas exist.
Technicians adjust sensor placement during calibration to reflect realistic operating conditions. Accurate positioning allows powder coating equipment to monitor the average chamber temperature rather than isolated hot spots. Correct sensor locations help powder coating systems maintain balanced curing across large parts and densely loaded racks.
The Role of Data Loggers in Heat Validation
Data loggers record temperature readings from multiple sensors as parts travel through powder curing ovens. These compact devices attach to test panels and move through the oven while capturing temperature changes over time. The recorded information provides a clear picture of how heat builds during the curing process. Temperature graphs produced by data loggers reveal patterns that standard displays cannot show. Engineers can identify uneven heating zones or slow warm-up periods inside powder coating equipment. This information helps refine airflow settings, heating output, and conveyor speed so the entire powder coating system maintains stable curing conditions.
Methods for Cross Checking Controller Setpoints
Control panels inside powder coating ovens rely on sensors to regulate heating elements or burners. Calibration checks confirm that the displayed setpoint temperature matches the actual chamber conditions. Independent thermocouples and handheld instruments allow technicians to compare readings and identify small differences.
Verification typically involves several steps:
• Compare controller readings with calibrated reference sensors
• Monitor temperature stability during a full cure cycle
• Confirm readings across multiple oven locations
• Adjust controller offsets if measurement differences appear
These checks help powder coating equipment maintain reliable heating performance throughout the curing process.
How Airflow Balance Affects Temperature Mapping
Air movement inside an industrial powder coating oven plays a large role in temperature uniformity. Recirculation fans push heated air through ducts and across coated parts, helping the entire chamber maintain similar temperatures. Uneven airflow can create pockets where heat builds slowly or escapes too quickly.
Balanced airflow ensures temperature readings collected during calibration reflect real production conditions. Engineers sometimes adjust fan speeds or duct direction to improve circulation inside powder coating ovens. Even airflow supports accurate temperature mapping and helps powder coating systems cure finishes evenly across every surface.
Understanding Drift in Long Term Operation
Temperature sensors and electronic controls gradually change behavior as equipment ages. This shift, often called drift, occurs after long periods of heating and cooling cycles inside powder curing ovens. Even high-quality sensors may begin to display small measurement differences over time.
Periodic calibration helps detect this drift before it affects curing quality. By comparing sensor readings with independent instruments, technicians can determine whether adjustments or replacements are necessary. Monitoring long-term performance allows powder coating equipment to maintain reliable heat control across years of operation.
Signs Your Oven Needs Recalibration
Certain operating conditions signal that calibration should be performed again. Production teams may notice subtle changes in coating appearance or longer cure times even though the oven display shows normal temperatures. These situations often indicate that the temperature control system requires verification.
Common indicators include:
• Uneven gloss or texture across finished parts
• Cure cycles that seem longer than usual
• Temperature readings that fluctuate unexpectedly
• Differences between air temperature and metal temperature tests
Recognizing these signs early helps maintain stable powder coating results.
Why Routine Calibration Protects Finish Integrity
Routine calibration protects the consistency of powder coating finishes produced by the oven. Even small temperature variations can affect how coatings flow, bond, and cure on metal surfaces. Maintaining accurate temperature control helps powder coating systems produce finishes that meet durability and appearance expectations. Production facilities that invest in calibration testing also gain better confidence in their powder coating equipment performance. Accurate heat delivery ensures powder curing ovens operate efficiently while maintaining reliable curing conditions across different part loads.
Complete powder coating equipment packages frequently include industrial powder coating oven systems designed for consistent airflow, accurate temperature control, and dependable curing results. Experienced suppliers such as Reliant Finishing Systems are widely recognized for designing powder coating systems and powder coating equipment that manufacturers can rely on for long-term production performance and support when selecting or installing a powder coating oven for sale.
